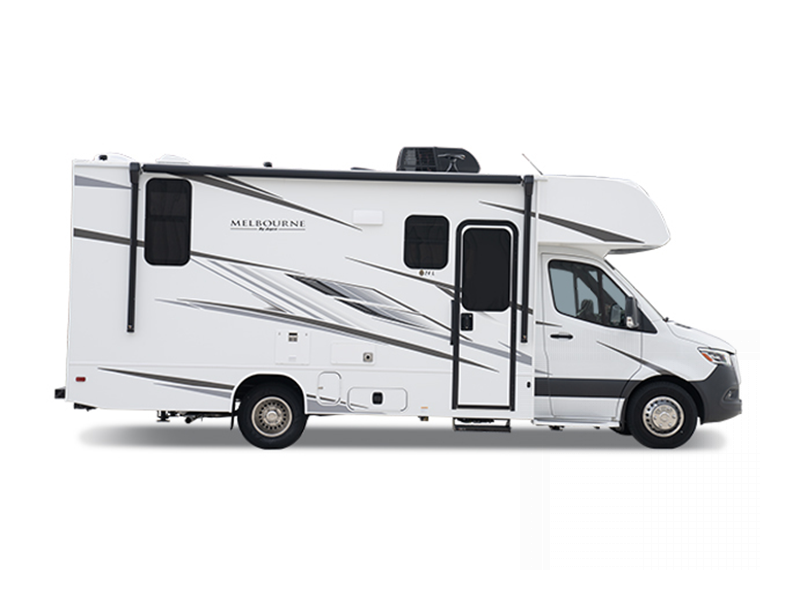

Jayco Melbourne Motor Home Class C - Diesel RVs For Sale

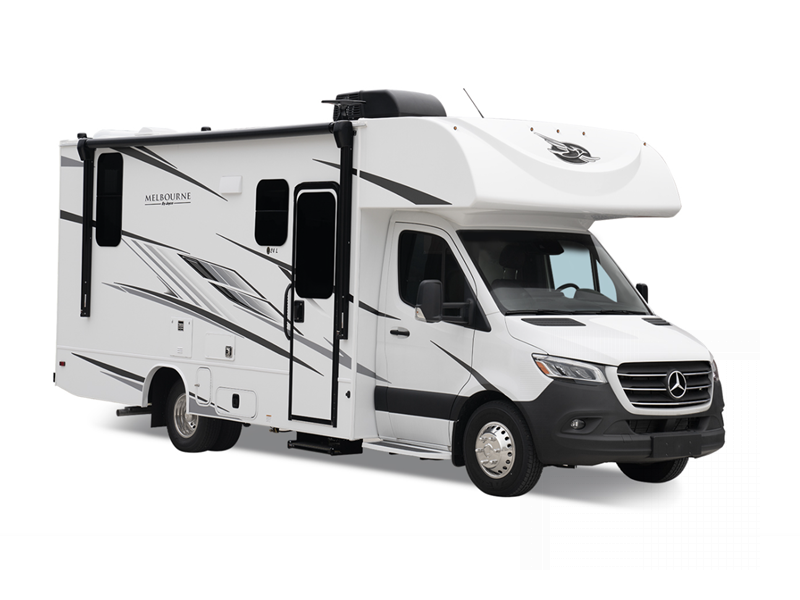

Sometimes the best things in life come in smaller packages, like the Melbourne Class C diesel motorhome by Jayco! You will love how easy it will be to maneuver through the town or country, and there are many residential features to make you feel right at home.

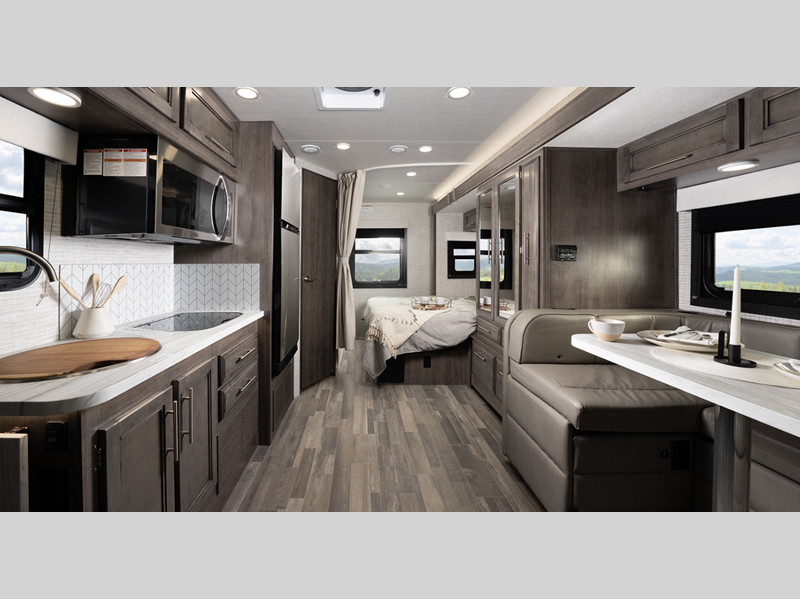

The durable chassis features an updated 2L V4 twin turbo diesel engine with 211 HP and 332 ft. lb. torque for more power, and the one-piece, seamless fiberglass front cap will add years of use to your unit. You will find the drive easier than ever with backup and side-view cameras, plus a 7" integrated Mercedes-Benz MBUX infotainment center. Each model also includes pleated blackout shades, LED-lit pressed countertops, hardwood cabinet doors and drawer fronts, and many more interior comforts!
The open road is yours in a Melbourne Class C diesel motorhome by Jayco. Choose your favorite floorplan today!
-
Melbourne 24L
Jayco Melbourne Class C diesel motorhome 24L highlights: 14' Power Awning with ... more about Melbourne 24L
Have a question about this floorplan? Contact Us
Specifications

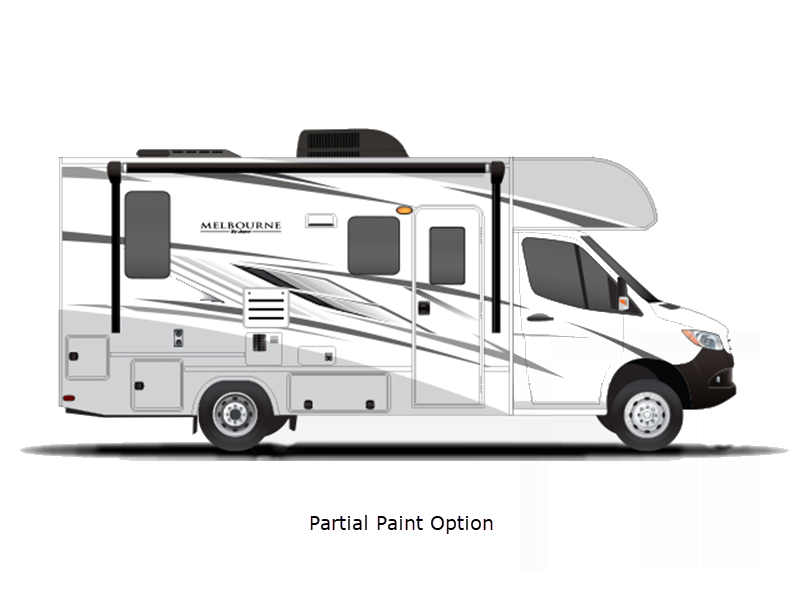

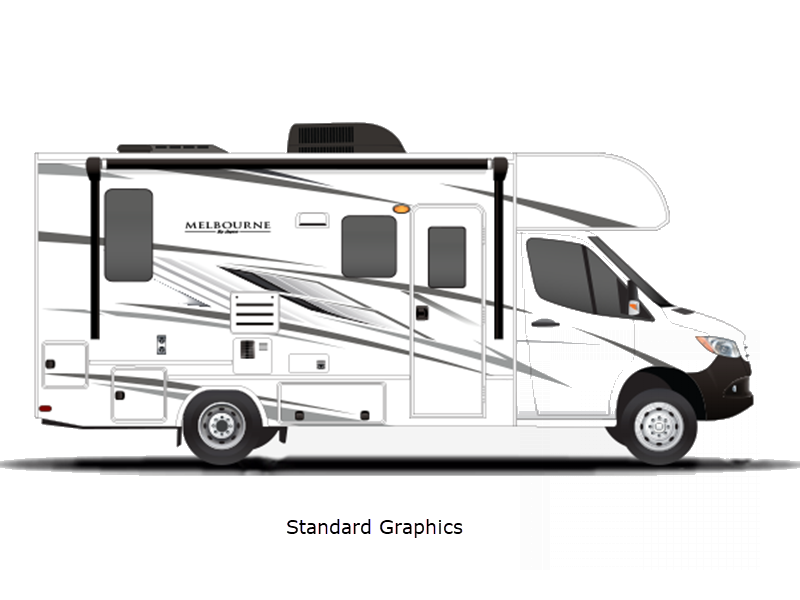

Sleeps 5 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Ashville Exterior Color Standard Graphics, Optional Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 43 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-watt LP Fuel Type Diesel Engine 2L V4 Twin Turbo Diesel Chassis Mercedes-Benz 3500 Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds RV Queen Torque 332 ft-lb Refrigerator Type 12V Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 24" x 32" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu Basement Storage 17 cu. ft. TV Info LR LED HD Smart TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Melbourne 24R
Jayco Melbourne Class C diesel motorhome 24R highlights: Full-Wall Slide ... more about Melbourne 24R
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Ashville Exterior Color Standard Graphics, Optional Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-Watt LP Fuel Type Diesel Engine 2L V4 Twin Turbo Diesel Chassis Mercedes-Benz 3500 Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds RV Queen Murphy Bed Torque 332 ft-lb Refrigerator Type 12V Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 24" x 32" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu Basement Storage 22 cu. ft. TV Info LR LED HD Smart TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Melbourne 24T
Jayco Melbourne Class C diesel motorhome 24T highlights: Rear Twin Beds Bedroom ... more about Melbourne 24T
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Ashville Exterior Color Standard Graphics, Optional Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 43 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-watt LP Fuel Type Diesel Engine 2L V4 Twin Turbo Diesel Chassis Mercedes-Benz 3500 Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Two Twin with King Conversion Torque 332 ft-lb Refrigerator Type 12V Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 19" x 28" x 34" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu Basement Storage 38 cu. ft. TV Info LR LED HD Smart TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Melbourne Features:
Standard Features (2024)
Driving Equipment
- Mercedes-Benz® 3500 chassis with 170 in. wheelbase
- GVWR- 11,030 lb.
- GCWR- 15,250 lb.
- 2L V4 Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft. lb. torque
- 9-speed automatic transmission
- 220-amp alternator
- E-rated highway tires- 215/85R16
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000 lb. rear hitch receiver with dual connector
- 12V chassis battery
- 26.4 gal. fuel tank
- 5.8 gal. DEF tank
- Tilt steering wheel
- Power windows and door locks
- Cruise control
- Crosswind assist
- Hill start assist
- Attention assist
- Brake Assist Plus
- Breakdown management
- Emergency call system
- Headlight assistant
- Auxiliary start switch
- Driver and passenger airbags
- Privacy curtain for cab area
Exterior Equipment
- Stronghold VBL™ Vacuum-Bond laminated roof, floor and sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
- TPO laminated roof
- Fiberglass running boards
- Fiberglass exterior walls with vinyl graphics
- Electric stabilizer jacks
- Slideout awning(s)
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance step with integrated house battery compartment
- Third brake light
- 4 in. bumper tube with sewer hose storage
- Prep for satellite dish
- Cable TV hookup with RG-6 coax
- Digital antenna with signal booster
- Onan® 3,600W LP generator
- Solar prep
- 12V house battery
- Transfer switch with reverse polarity protection
- 30-amp electrical service
- 12.2 gal. propane tank (41 lb.)
- LP quick-connect hookup
- Exterior utility center
- Winterization drain system
- Black tank flush
- Outside shower
- 12V demand water pump
- Water filtration system

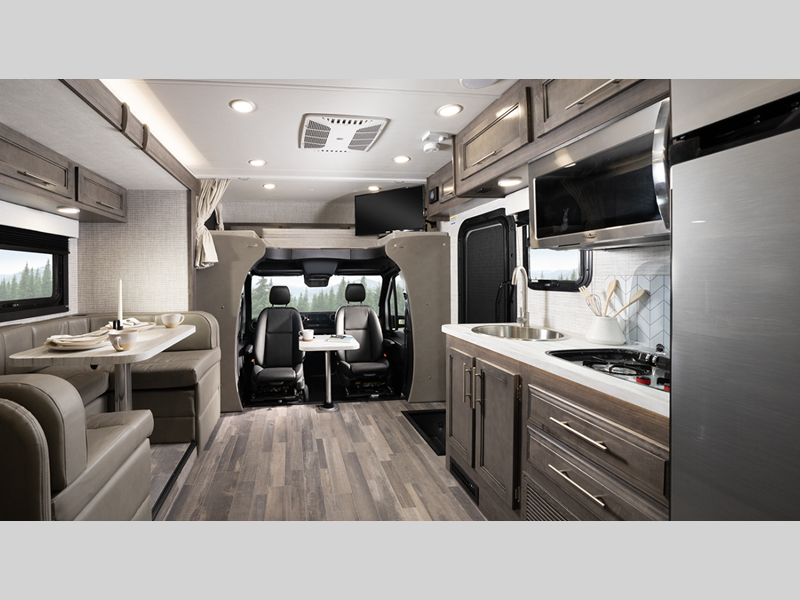

Interior Equipment

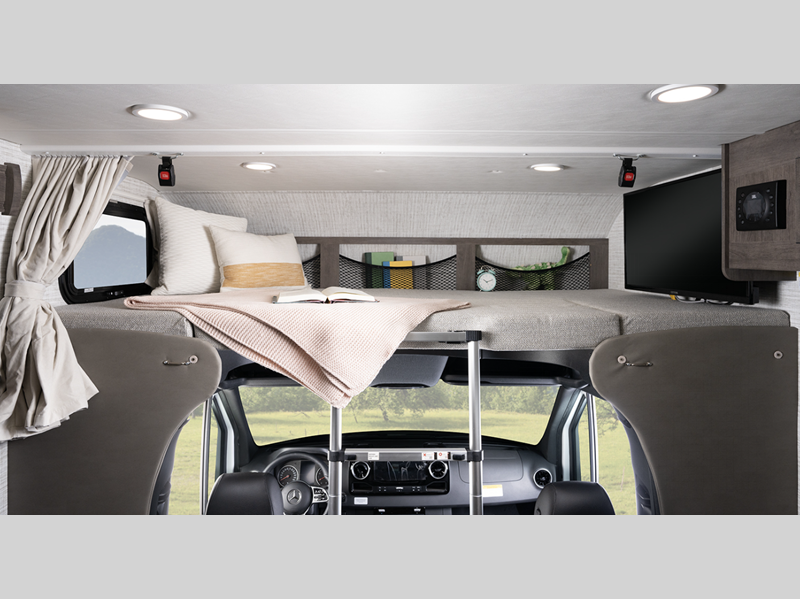

- Overhead bunk with 750 lb. capacity
- 83 in. interior ceiling height with padded vinyl ceiling
- High-intensity, LED ceiling lights
- LED-lit slideout fascia
- Hardwood cabinet doors and drawer fronts
- Ball-bearing drawer guides
- Pleated blackout shades
- 13,500 BTU A/C
- 30,000 BTU auto-ignition ducted furnace
- 6 gal. gas/electric water heater and water heater bypass
- Powered roof vent in living area with wall switch
- Jayco-exclusive, easy-operation legless dinette table (24R)

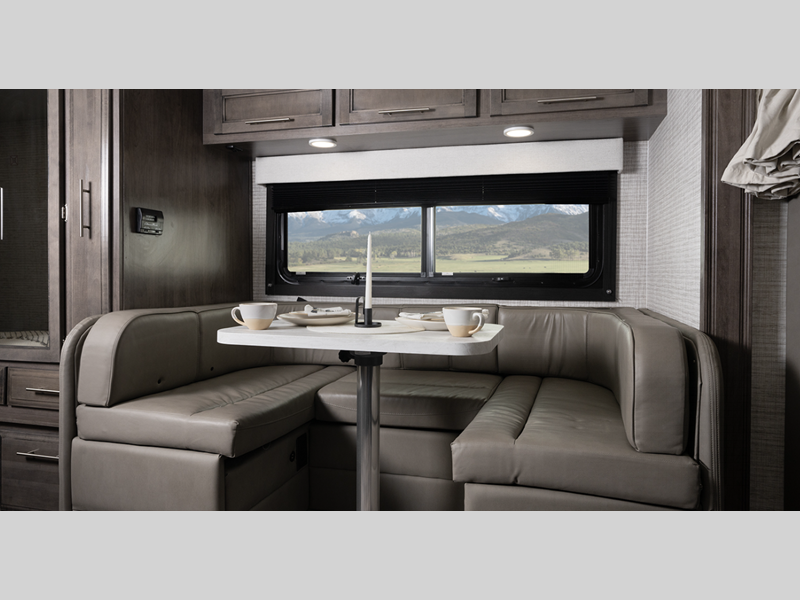

- U-shaped dinette with stow away pedestal legs (24L)
- 12V USB charging station in dinette area
- 2-point lap safety belts in all designated seating locations
- Car seat tethers (select floorplans)
- LED HD Smart TV

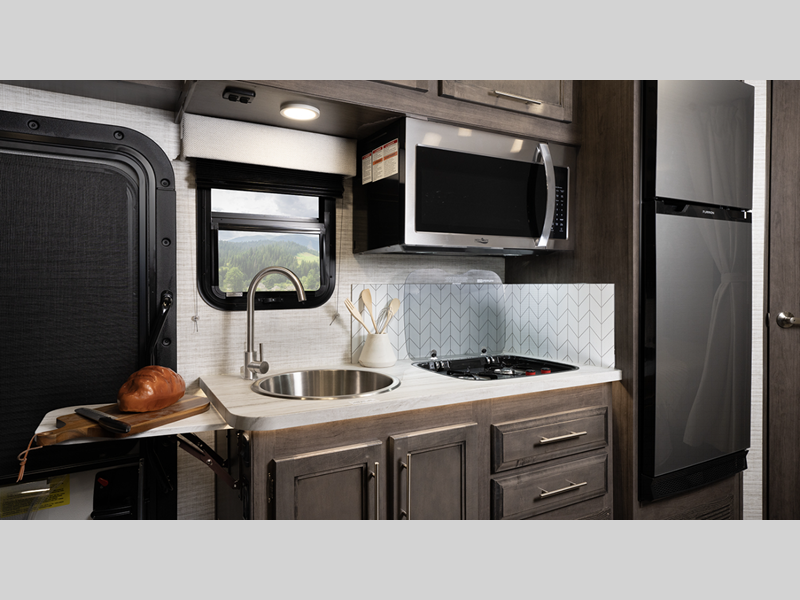

- 10 cu. ft. 12V refrigerator
- 2-burner, drop-in cooktop with flush cover
- Convection microwave
- Stainless steel sink with wooden cover/cutting board
- LED-lit pressed countertops
- Flip-up countertop extension (select models)
- Decorative kitchen backsplash

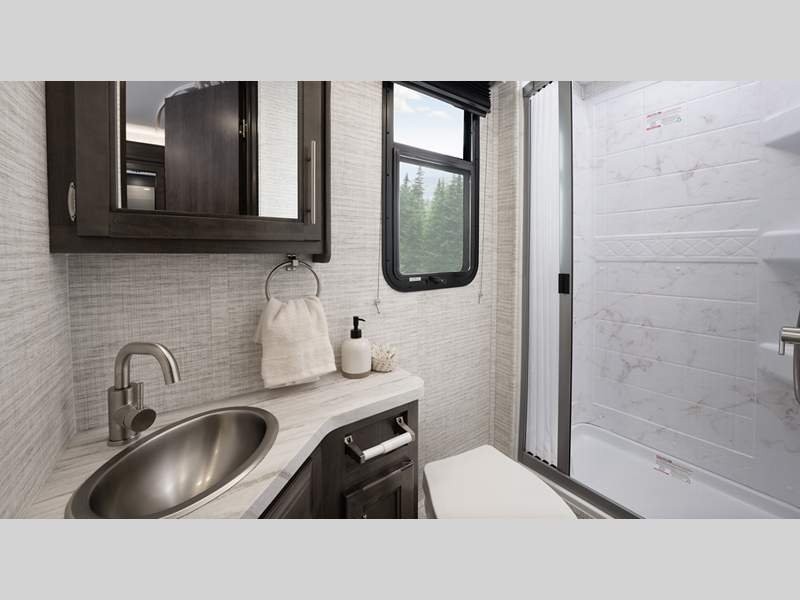

- Shower with decorative surround and skylight
- Stainless steel bathroom sink
- Toilet with foot flush
- Powered roof vent in bathroom with wall switch

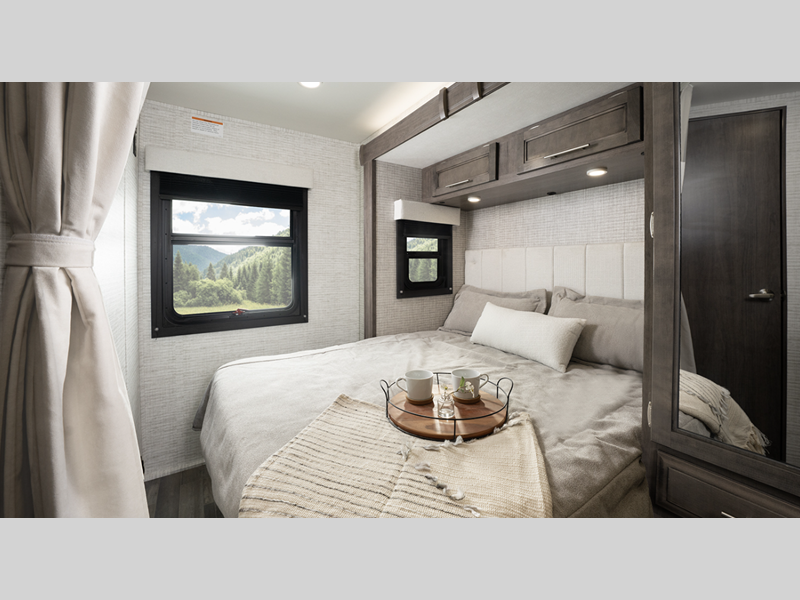

- Queen-size bed with bedspread (24L)
- Queen-size power Murphy bed (24R)
- (2) twin-size beds with filler cushion converts to king-size bed (24T)
- USB port(s) in bedroom
- Bedroom TV prep
- Large wardrobes
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Customer Value Package (Mandatory)
- One-piece, seamless, fiberglass front cap
- Frameless windows
- Heated holding tanks (12V pads)
- Heated, remote-controlled, side view mirrors
- Electric patio awning with LED lights
- Backup and side-view camera
- Keyless cab entry

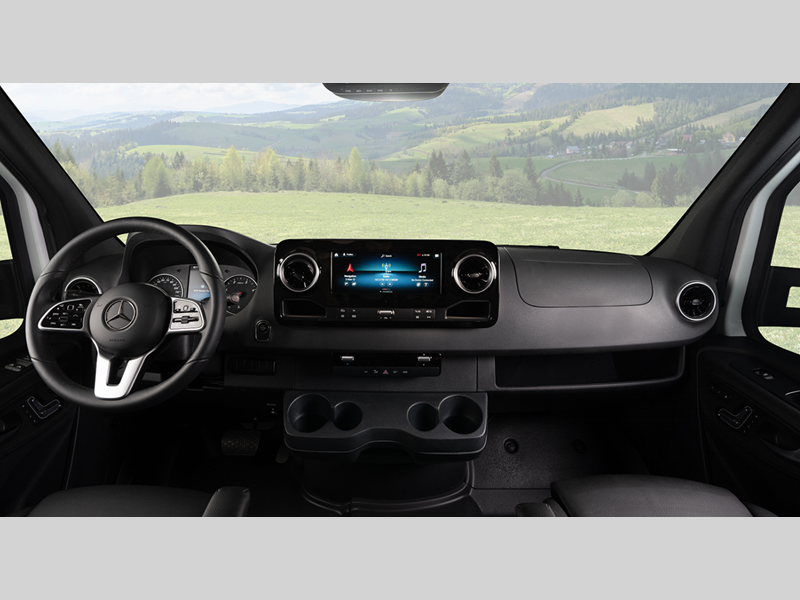

- 7 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
- Swivel driver and passenger seats with boosters
Options
- Premium Mercedes chassis - includes active brake assist, chrome grill package, adaptive cruise control, heated captain's seats, smartphone tray with wireless charging, upgraded lighting package, rain-sensing wiper system, leather steering wheel, lane-keeping assist and traffic sign assist.
- Front entertainment center with 32 in. LED HD Smart TV
- 3,200W diesel generator
- Folding windshield sun shade
- 4-point hydraulic leveling jacks
- Theater seating ILO dinette (24L, 24R)
- 200W solar panel with dual controller and second house battery
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
